Yupitek iBeacon Series — BLE 5.0 Beacons

Yupitek iBeacon products represent a new generation of Bluetooth® Low Energy (BLE 5.0) beacon devices designed for high-performance localization, personnel tracking, and commercial advertising. Supporting both Apple iBeacon™ and Google Eddystone™ (UID, URL, TLM) protocols, our beacons allow simultaneous multi-protocol broadcasts (up to 6 slots) configured easily via the BeaconSET+ mobile app.

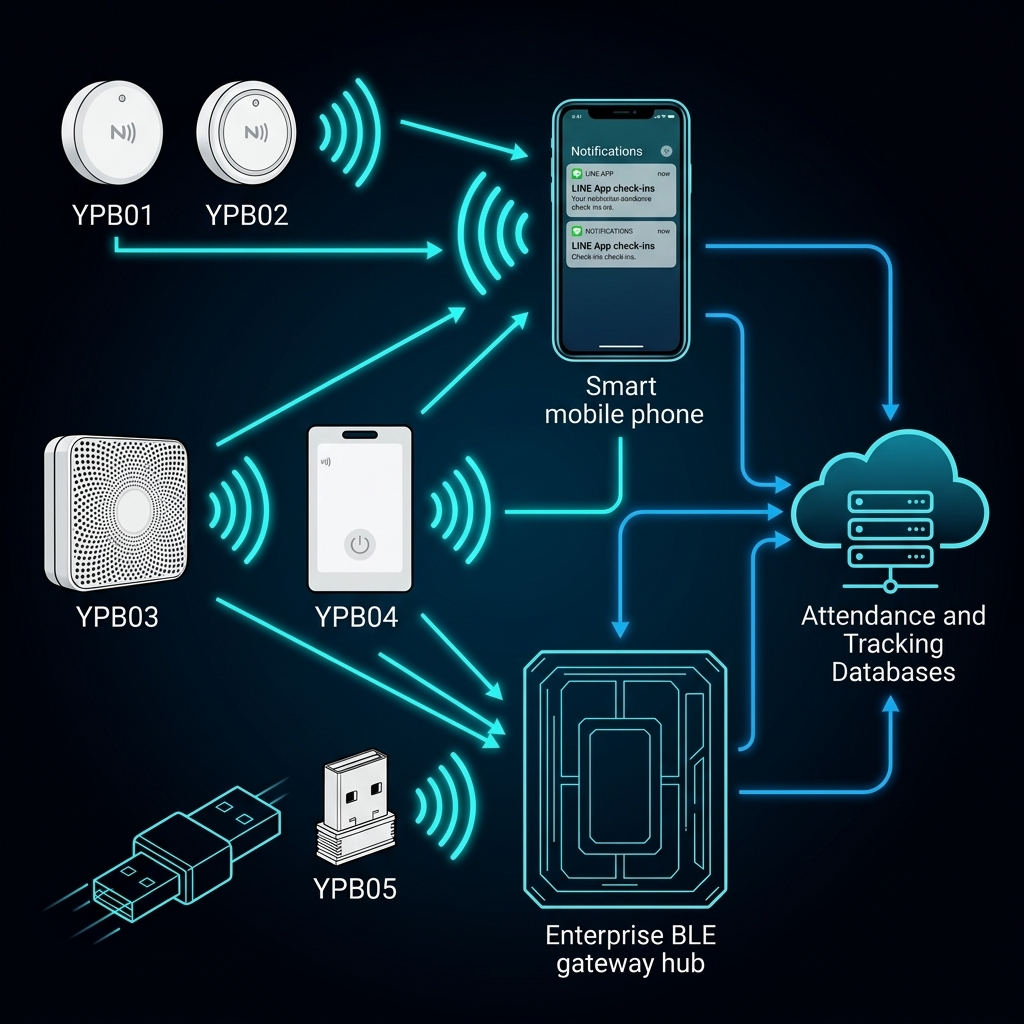

BLE Beacon System Topology

#

Our iBeacon ecosystem connects physical locations with enterprise cloud networks. The beacons transmit BLE radio signals at regular intervals, which are scanned by mobile devices (running corporate apps) and BLE Gateways, forwarding secure logs to central attendance and asset tracking systems.

Product Line

#

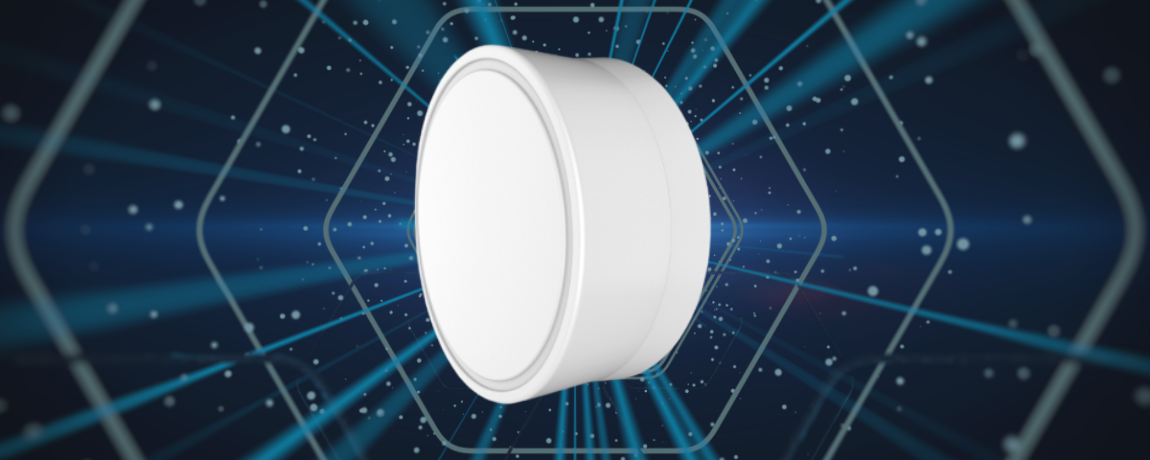

YPB01 BLE 5.0 Beacon

Compact coin-cell beacon with up to 100m range and IP67 waterproof rating. Powered by a replaceable CR2477 battery (2+ years life).

YPB02 Sensor Beacon

Coin-cell beacon equipped with LIS3DH 3-axis accelerometer sensor. Supports motion-triggered broadcasts and falling alarms to optimize battery life.

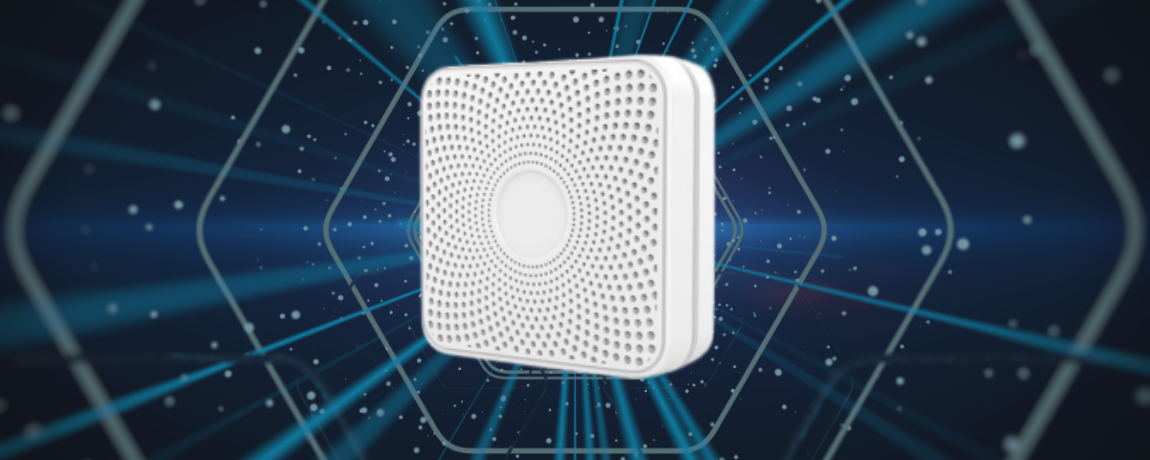

YPB03 Max Beacon

Heavy-duty, long-range (240m) beacon powered by 4x AA batteries. IP65 waterproof casing with mounting bracket, providing up to 10 years of battery life.

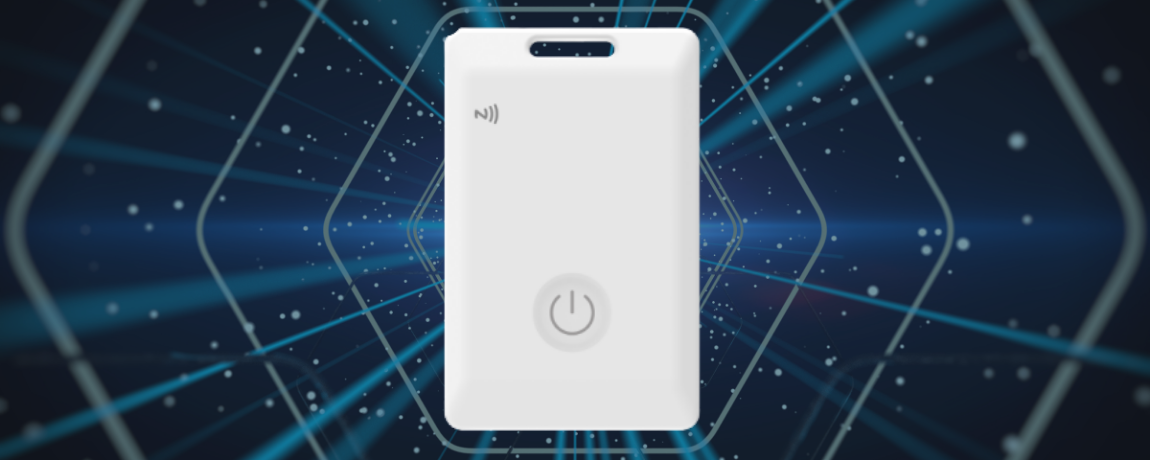

YPB04 Rechargeable Badge

Wearable smart badge for personnel management. Features magnetic charging, vibration motor, RGB LED, accelerometer, and optional RFID compatibility.

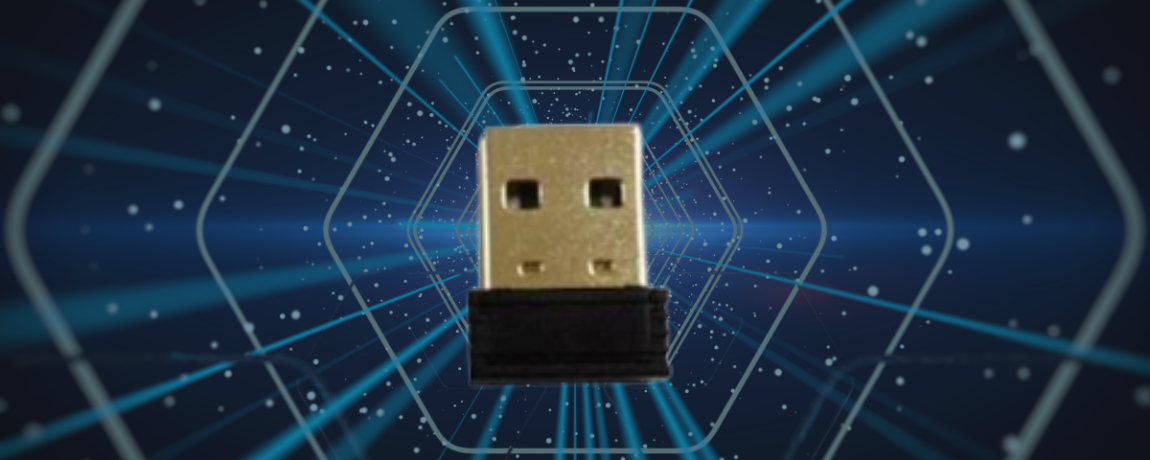

YPB05 Micro USB Beacon

Ultra-compact (2.0g), battery-free USB beacon. Plug-and-play operation powered directly by any USB outlet, computer, or router.

iBeacon Series Comparison

#
