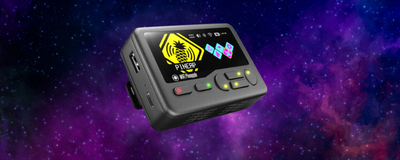

WiFi Pineapple Pager

Table of Contents

The Hak5 WiFi Pineapple Pager is a pocket-sized standalone handheld for authorized Wi-Fi security assessments, running Linux and DuckyScript payloads without a computer. It covers 2.4, 5 and 6 GHz Wi-Fi plus Bluetooth 5.2. Yopitek offers it for purchase in Taiwan.

Product Features
#

WiFi Pineapple Pager

  • Hak5 20th Anniversary Flagship: 8th-generation PineAP engine
  • Fully Standalone Operation: No external computer required — independent handheld Linux wireless audit device
  • Tri-Band WiFi + Bluetooth: Supports 2.4 GHz / 5 GHz / 6 GHz (802.11ax) and Bluetooth 5.2 / BLE 4.2
  • Payload System: Powered by DuckyScript™ + Bash
  • 2.4" Color Display (480×222, 221 PPI): Clearly visible indoors and outdoors
  • Multi-Sensory Notifications: Built-in speaker (programmable chime) and vibration motor (silent notifications)
  • Programmable Buttons: Programmable RGB LED 4-way D-pad plus A and B buttons
  • Real-Time Alert Payload: Auto-triggers based on detected WiFi activity
  • Modular Expansion: Full root-access Linux, supports GPS, additional radios, and other hardware modules

Key Specifications
#

SpecificationDetails
CPU580 MHz MIPS 24K router chip
WirelessTri-band 802.11 a/b/g/n/ac/ax (2.4 / 5 / 6 GHz), dual-radio array
BluetoothBluetooth 5.2 + BLE 4.2
Memory256 MB DDR2 RAM + 128 MB SPI Flash
Storage4 GB eMMC
Battery2000 mAh LiPo (with BMS and LED charge indicator); approx. 4 hours per charge (Hak5 estimate)
Charge / DataUSB-C (integrated Ethernet interface)
ExpansionUSB 2.0 (for hardware module mods)
Indicators4 × RGB LED
OtherPWM Buzzer, vibration motor, RTC (real-time clock)
OSLinux

Application Scenarios
#

  • Standalone wireless penetration testing in the field without an attached computer
  • Red team operations (clip to belt, fully wireless operation)
  • Concurrent tri-band WiFi and Bluetooth auditing
  • DuckyScript-driven automated Payload tasks
  • On-site OSINT, handshake capture, and deauthentication attacks

Official Documentation & Downloads
#

ResourceLink
📖 Official DocumentationView Online
⬇️ Firmware & ToolsHak5 Download Portal
Need a product quotation? Please contact us

Frequently Asked Questions

Does the WiFi Pineapple Pager need a computer?

No. Hak5 describes the WiFi Pineapple Pager as a pocket-sized, standalone handheld that runs PineAP attacks and DuckyScript payloads without a computer attached. It runs Linux with root access and supports DuckyScript and Bash.

Which Wi-Fi bands and radios does the WiFi Pineapple Pager have?

Hak5 lists 2.4 GHz, 5 GHz and 6 GHz. The primary radio is a dual PHY 2T2R 802.11a/b/g/n/ac/ax and the secondary radio is a single PHY 2T2R 802.11b/g/n. It also has Bluetooth 5.2 and Bluetooth 4.2 Low Energy.

What battery and ports does the WiFi Pineapple Pager have?

It has a serviceable 2000 mAh LiPo battery charged over USB-C (5V 2A). Hak5 estimates about 4 hours of battery life per charge. The USB-C port also provides Ethernet, and a USB 2.0 Host port is available for expansion. Hak5 lists the size as 87 x 62 x 24 mm and the weight as 131 g.

What payload languages does the WiFi Pineapple Pager support?

Payloads are written in DuckyScript or Bash, and the device runs Linux with root access.

Setup guides and technical details — doc.yupitek.com
