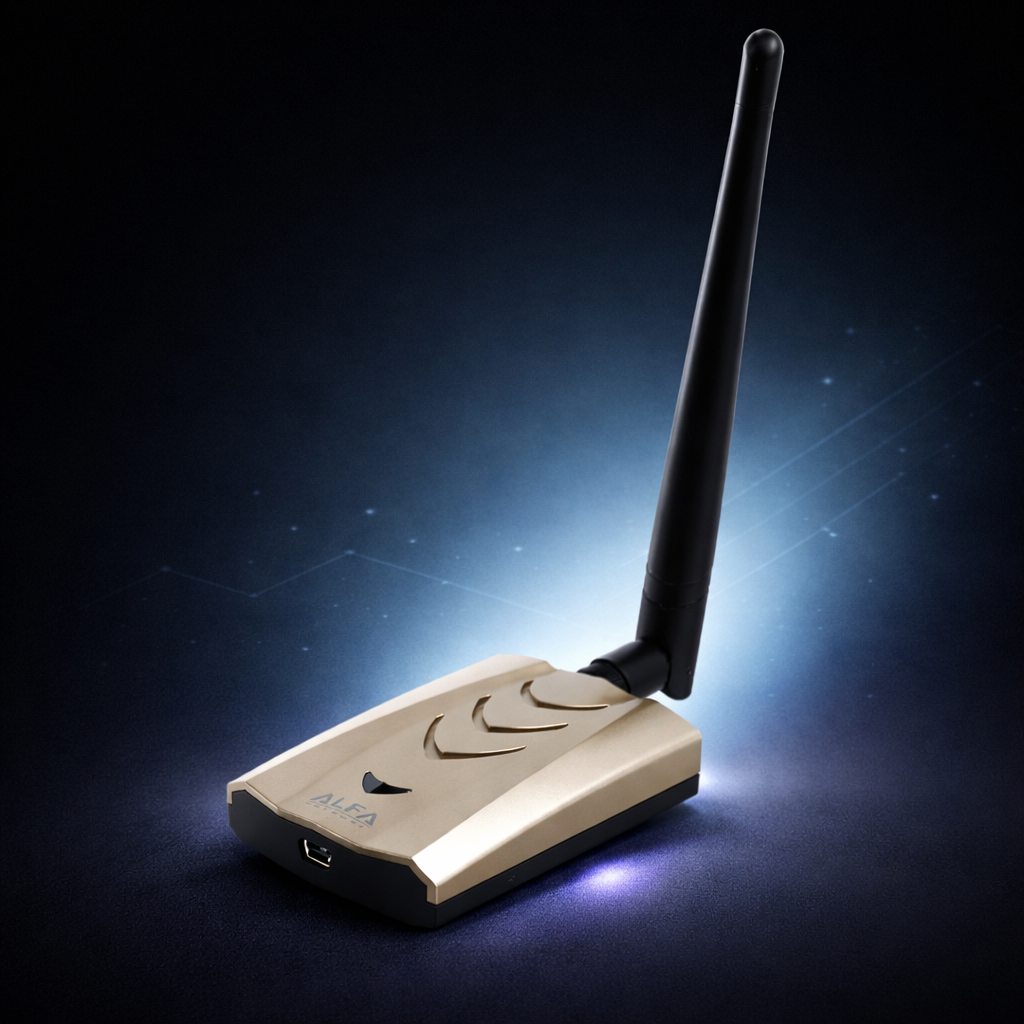

ALFA AWUS036ACHM — AC600 Dual-Band Compact USB Wireless Adapter

Table of Contents
Legal Use Notice: Monitor Mode features are intended solely for authorized security testing, educational research, and lawful penetration testing. Ensure you have explicit authorization from the target network owner before use.

Product Overview
#

The AWUS036ACHM is powered by the MediaTek MT7610U chipset and supports IEEE 802.11ac dual-band with a maximum throughput of 433 Mbps on 5GHz. Its compact single-antenna design with a 1m USB extension cable makes it ideal for portable or low-power use cases.

Specifications
#

ItemSpecification
ModelAWUS036ACHM
ChipsetMediaTek MT7610U
Wi-Fi StandardIEEE 802.11 a/b/g/n/ac
Frequency BandDual-band 2.4GHz / 5GHz
Max Data Rate802.11n: 150 Mbps / 802.11ac: 433 Mbps
Antenna1 × Detachable dual-band antenna, 5 dBi
Antenna ConnectorRP-SMA female
InterfaceUSB 2.0
SecurityWEP, WPA, WPA2, WPA Mixed, WPS
LED IndicatorPower / WLAN

OS Compatibility
#

OSSupport Status
Windows✅ Driver required
Linux✅ Supported
Kali Linux✅ Full support
Raspberry Pi OS✅ Supported

Package Contents
#

  • AWUS036ACHM USB wireless adapter × 1
  • Dual-band antenna × 1
  • USB cable (1 m) × 1
  • Quick installation guide × 1
  • Monitor clip kit × 1

Driver Downloads
#

PlatformLink
Driver DownloadALFA Official Driver Repository
Official DocumentationALFA Product Documentation

Compatible Antenna Upgrades
#

All ALFA adapters feature a standard RP-SMA connector. Upgrade with an optional external antenna for greater range and gain:

AntennaFrequencyGainType
ALFA APA-M042.4 GHz7 dBiIndoor Panel
ALFA APA-M252.4 / 5 GHz8 / 10 dBiDual-Band Indoor Panel
ALFA APA-M25-6E2.4 / 5 / 6 GHz8 / 10 / 9 dBiTri-Band Indoor Panel
ARS 25-57A2.4 / 5 GHz5 / 7 dBiOutdoor Omni
ARS NT5B72.4 / 5 / 6 GHz4 / 5 / 7 dBiOmni
Need a product quotation? Please contact us

Frequently Asked Questions

Do I need to install a driver for the AWUS036ACHM on Linux?

Usually not. ALFA's Linux support page says the device is plug and play on Kali, Ubuntu and Raspberry Pi OS, and lists support in the mainline Linux kernel from version 4.19. On Debian you additionally add the non-free APT source and install the firmware package.

Does the AWUS036ACHM work on Windows and macOS?

ALFA provides driver downloads for Windows and macOS on the AWUS036ACHM documentation page, together with a Quick Installation Guide. Install the driver before first use on those systems.

Does the AWUS036ACHM support monitor mode and packet injection?

ALFA's documentation does not explicitly state monitor mode support. Its Linux support page does show aireplay-ng injection test results, all reported as OK. Test it on your own setup, and use these features only for authorized security testing.

Setup guides and technical details — doc.yupitek.com
